HOLLOW CONE SPRAY NOZZLES

Hollow cone spray nozzles work on the tangential flow principle and are manufactured by machine tool operation from metal bar stock. This offers versatile construction of small sized nozzles. In addition nozzles can be made on request from any special material and alloys that are available as a bar stock. This flow pattern is essentially a circular ring of liquid. Hollow cone nozzles are best for application requiring good atomization of liquids at lower pressures or where quick heat transfer is needed.

These Hollow cone nozzles work on the tangential flow principle and are manufactured by machine tool operation from metal bar stock. This offers versatile construction of small sized nozzles. In addition nozzles can be made on request from any special materials and alloys that are available as a bar stock. There are Following types of hollow cone nozzles.
1) Tangential Entry 2) Inline (Axial) Entry 3) Spiral Hollow Cone.

Design : Vaneless (Two Piece Construction ) Non clogging

Application : Cooling & Washing of gas

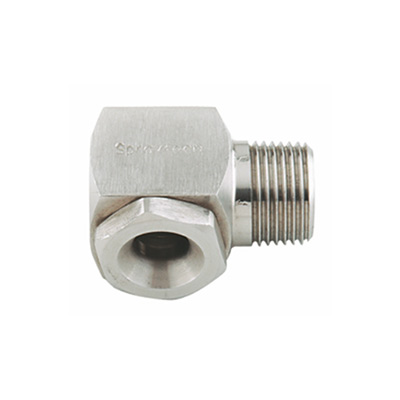

Hollow cone spray nozzle

BA SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4"

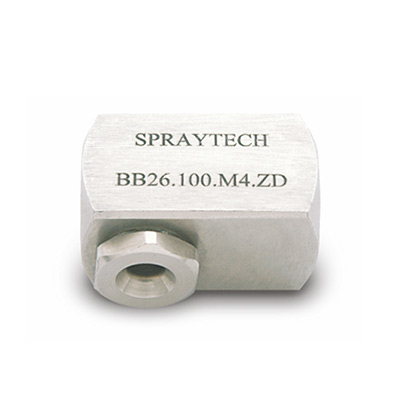

Hollow cone spray nozzle

BB SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4"

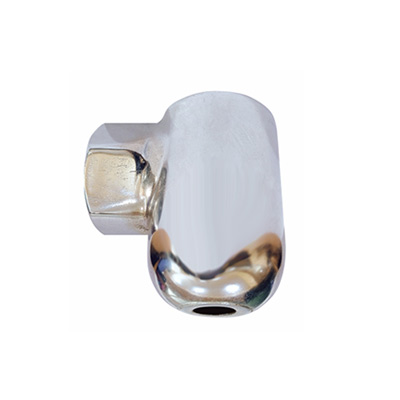

Hollow cone spray nozzle

BC SERIES

FLOW RANGE : 50 TO 540 LPM
SPRAY ANGLE : 75, 90
MATERIAL : SS704, SS316
END CONNECTION : 1, 1-1/2", 2", 2-1/2"

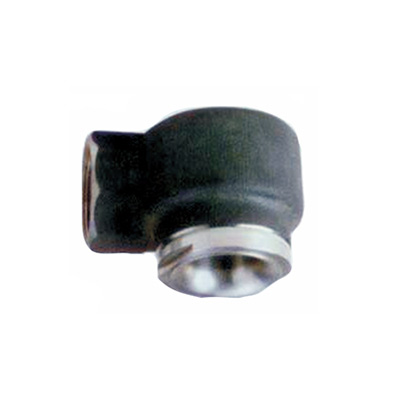

Hollow cone spray nozzle

BD SERIES

FLOW RANGE : 50 TO 540 LPM
SPRAY ANGLE : 130
MATERIAL : SS704, SS316
END CONNECTION : 1", 1-1/2", 2", 2-1/2"

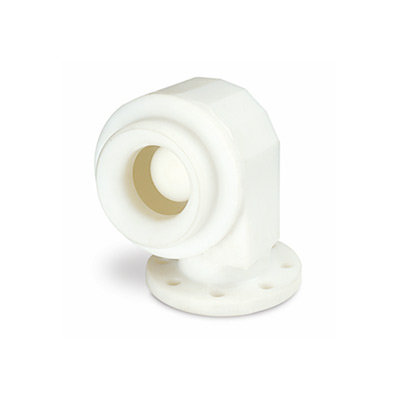

Hollow cone spray nozzle

BE SERIES

FLOW RANGE : 510 TO 3181 LPM
SPRAY ANGLE : 130
MATERIAL :
END CONNECTION : 3", 4"

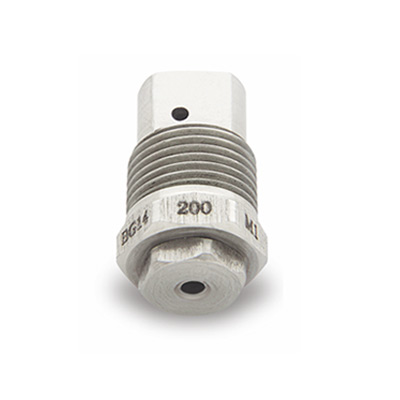

Hollow cone spray nozzle

BG SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1-1/2"

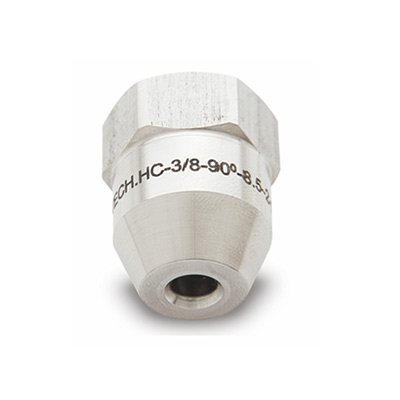

Hollow cone spray nozzle

BH SERIES

FLOW RANGE : 0.5 TO 16 LPM
SPRAY ANGLE : 60, 75, 90
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2"

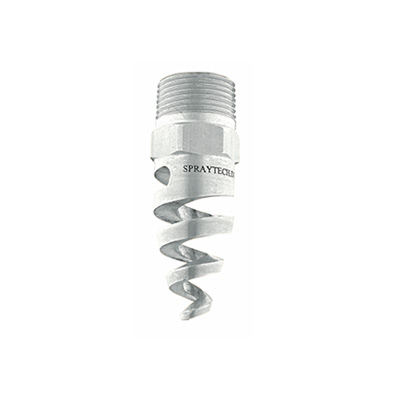

Hollow cone spray nozzle

BI SERIES

FLOW RANGE : 6.5 TO 337 LPM
SPRAY ANGLE : 60, 90, 120, 180
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1
