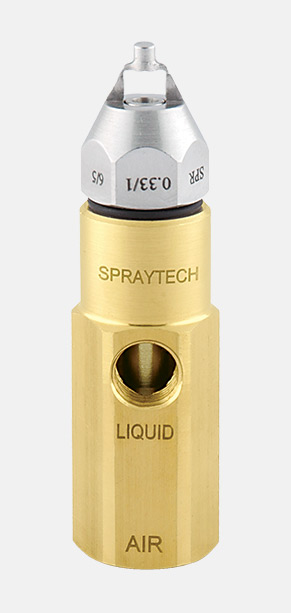

Dry fog spray nozzle
Dry fog nozzles provides very fine fog. The droplets size are around 5 – 15
microns which does not settle and feels like dry fog. It provides cone pattern with
spray angle of 60 - 90 degree. After 1 meter the fog disperse and make the
environment foggy. It requires 1.5 - 2 bar pressure for liquid and 3 – 5 bar for air
and both can be tuned as per requirement. It has one liquid and one air
connection. Both liquid and compressed air port has 1/8” BSP (F) connection.
Mist/fog can be controlled via regulating the air and liquid pressure.
Spray type: Dry fog
Operating pressure: For Liquid: 1.5 - 2 bar
For compressed air: 3 – 5 bar
Air consumption per unit: 4 – 6 CFM
Spray pattern: 60 - 90 degree flat curtain
Spray length: 1.5 meters (vertically downward spray)
1.5 meter (horizontal spray)
Spray angle: 60 / 90 degree
Flow rate: 0.5 - 1 LPH
Nozzle MOC: SS304 with Brass adaptor
End connection: 1/8 (F) for Liquid
1/8 (F) for Compressed air
Average droplet size: 5 – 15 microns
Utilities required: pump (capacity based on number of operating nozzles)
Compressed air (based on air capacity required by nozzle)
