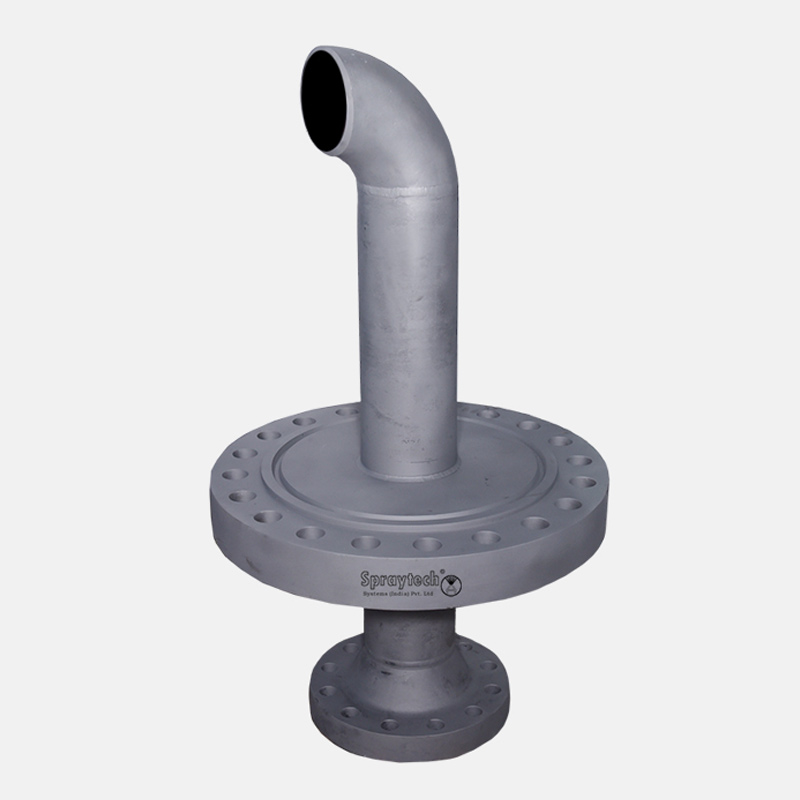

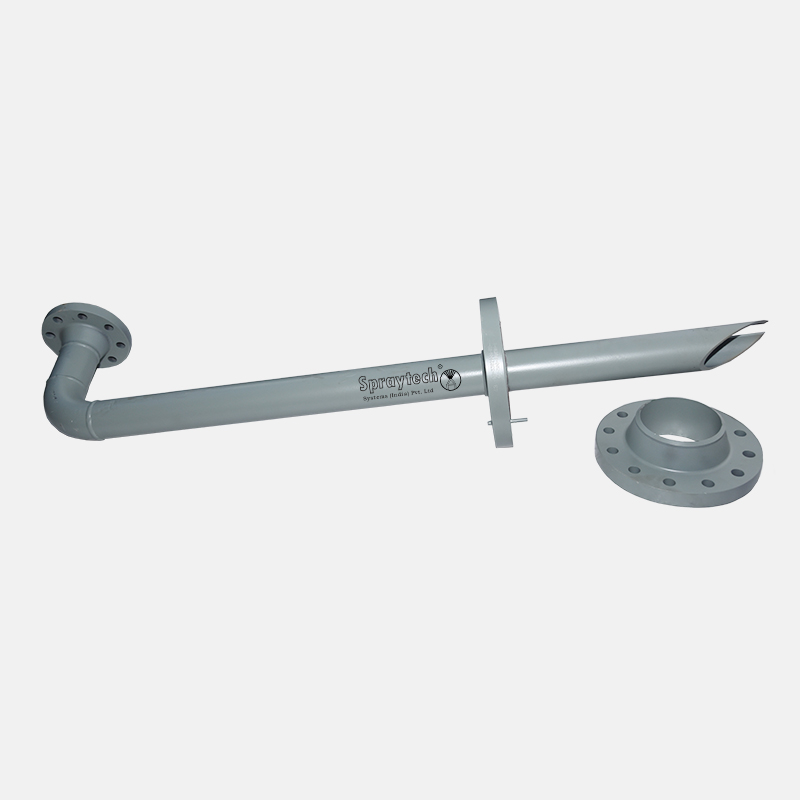

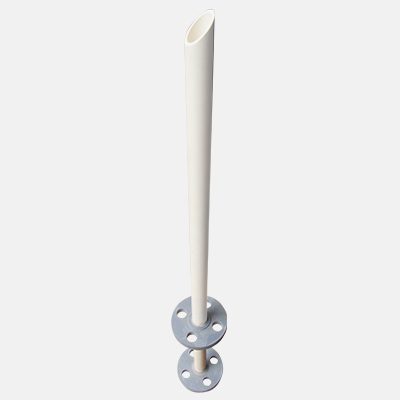

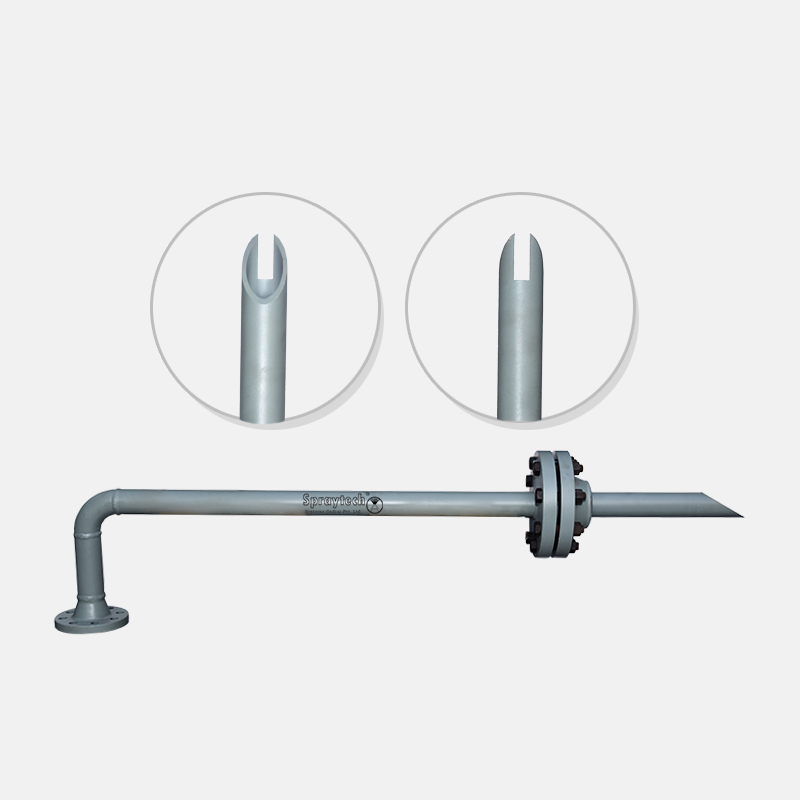

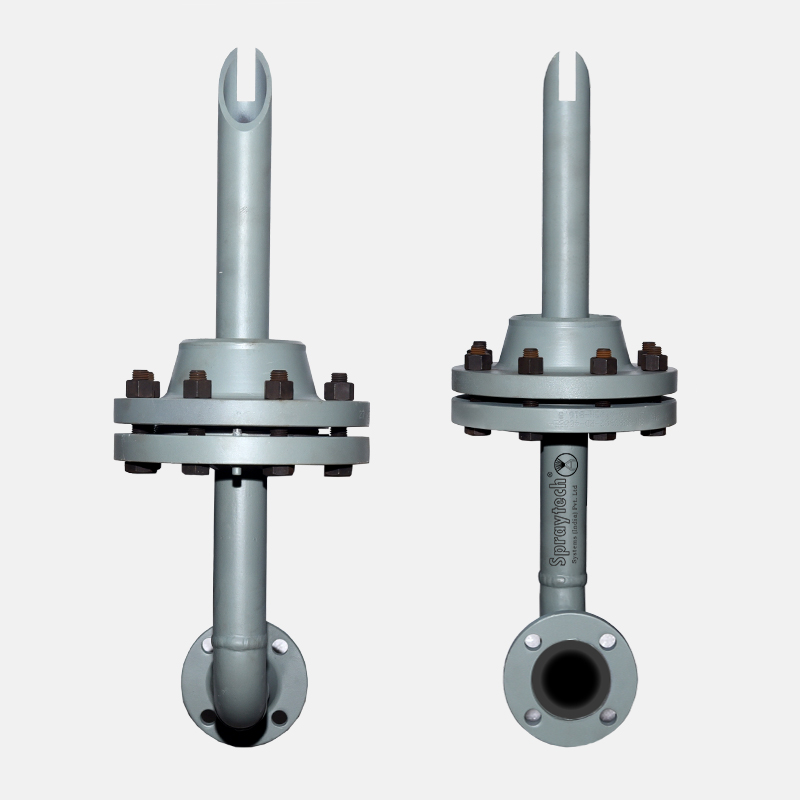

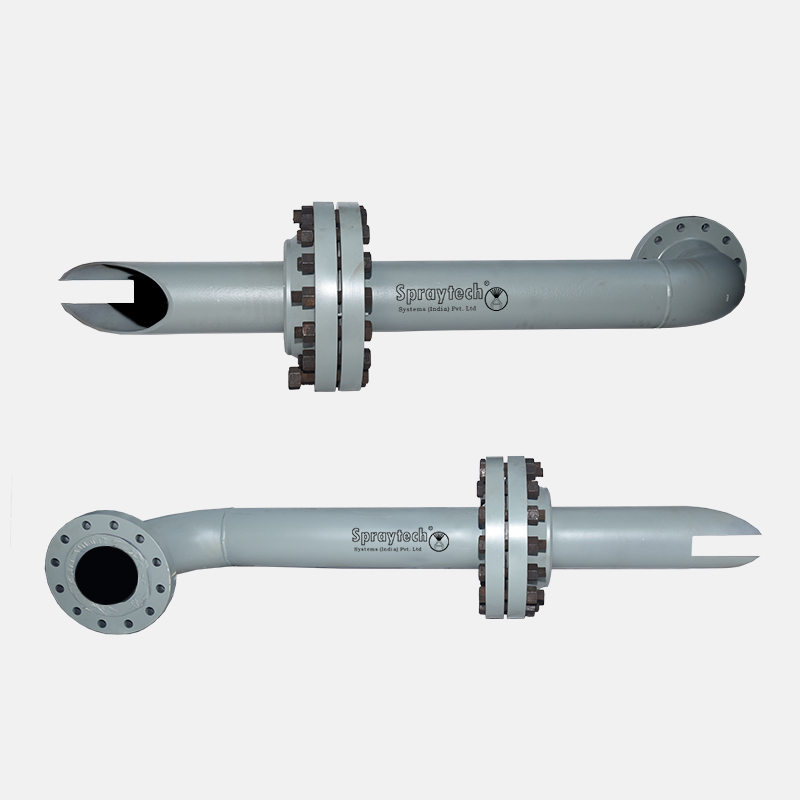

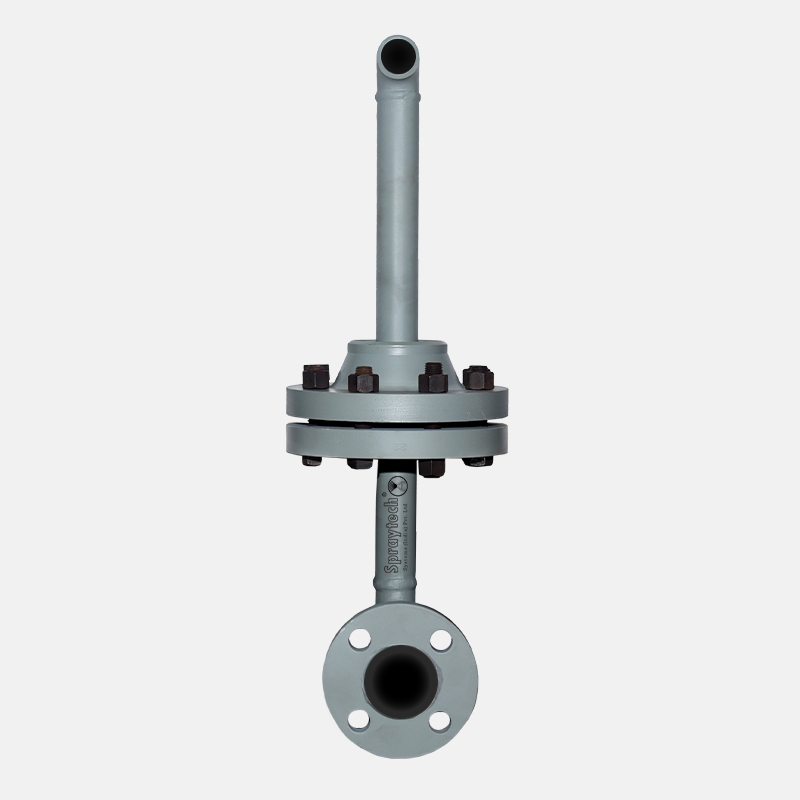

Injection Quill / Chemical Injection Quills

Chemical injection quills ensure that chemicals are evenly dispersed into the center of the pipeline, which prevents channeling of the chemical down the pipe wall. This prevents corrosive liquids from clinging to the side of the pipe. spraytech offers customized solution for injection quills with unique design spray nozzles.

MATERIAL :
1) ASTM A106 Gr B
2) ASTM A105
3) ASTM B423 (UNS NO. 8825)
4) ASTM A312 TP 321
5) ASTM A333 Gr 6
6) ASTM A312 TP 316L

SIZE :
1/4" to 24"

A) Male Injection Quills
B) Female Injection Quills / injection quill nozzles

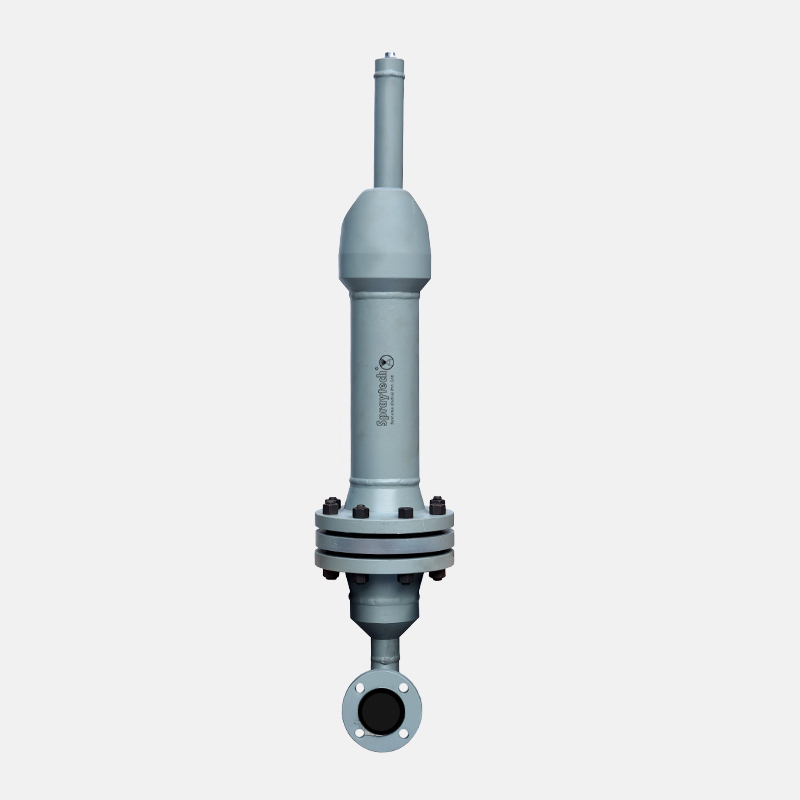

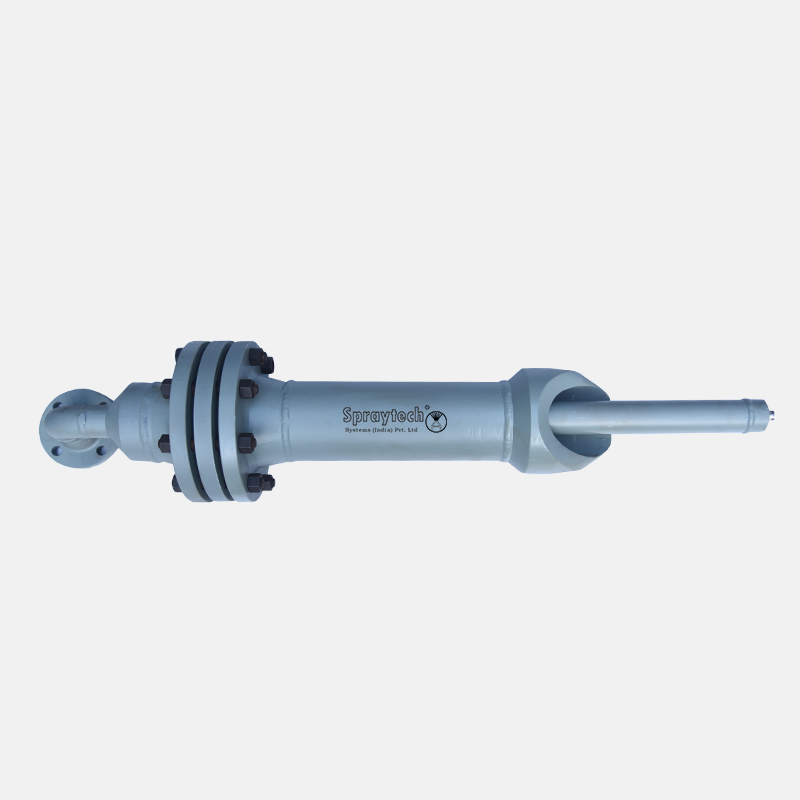

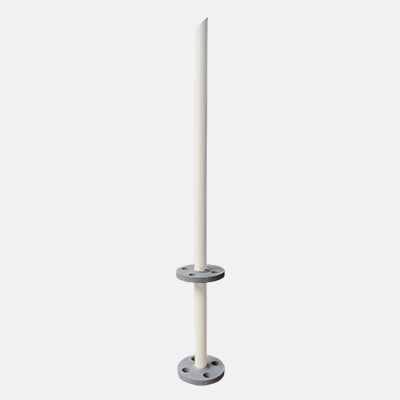

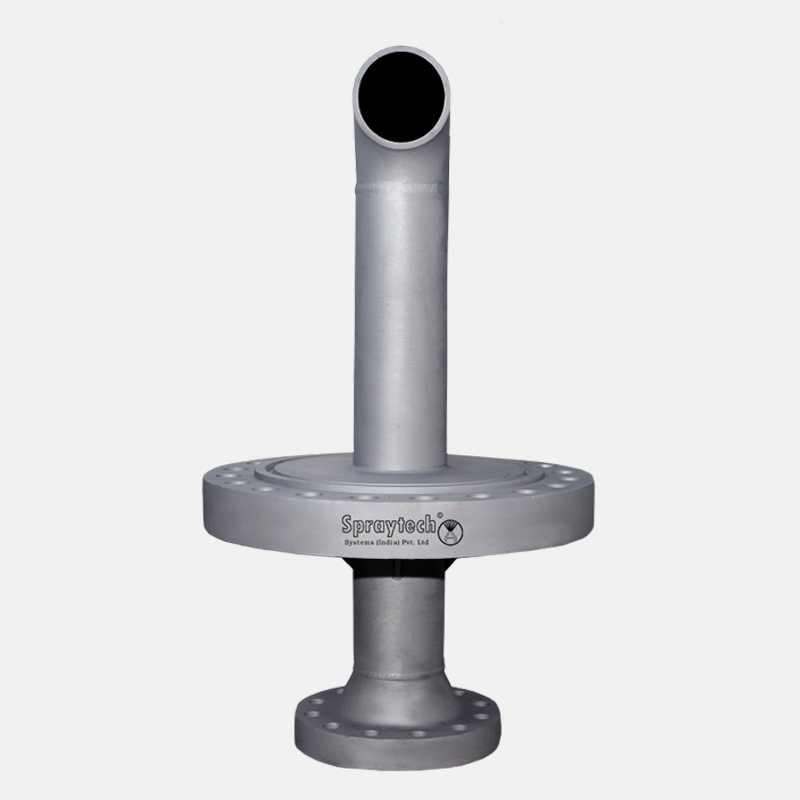

Online retrievable type chemical injection quill, Retractable injection quill with safety clamp, Retractable injection quill with safety chain, Non retractable injection quill, Injection quills with double block & bleed valve, Fixed type chemical injection quill, Chemical Injection Quills
